BIPV
-

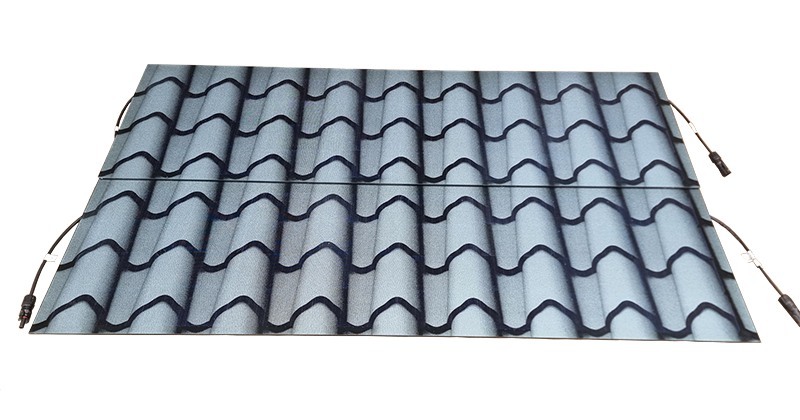

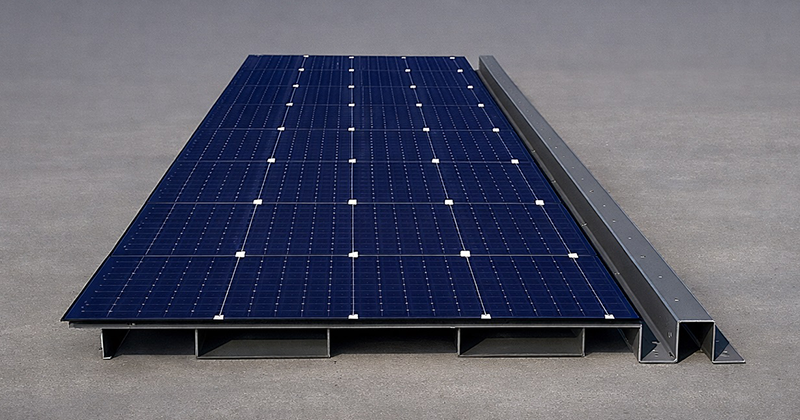

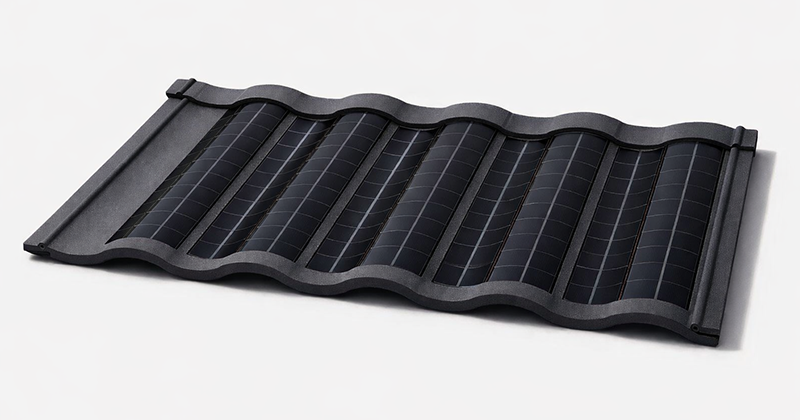

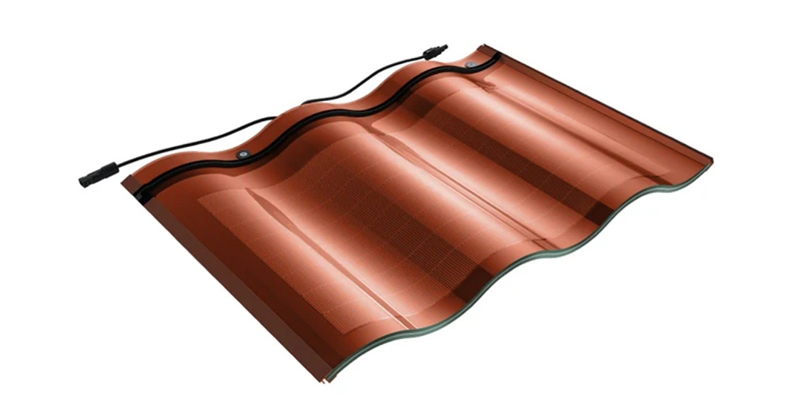

Soltile Series

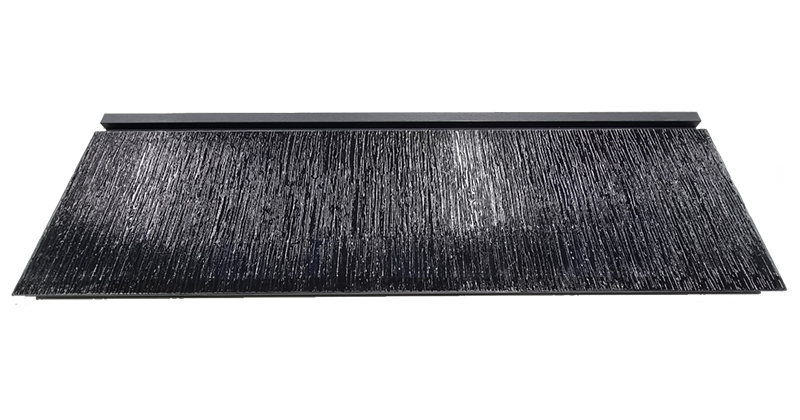

SOLTILE RAINY
SOLTILE ECO
SOLTILE TERRACOTTA

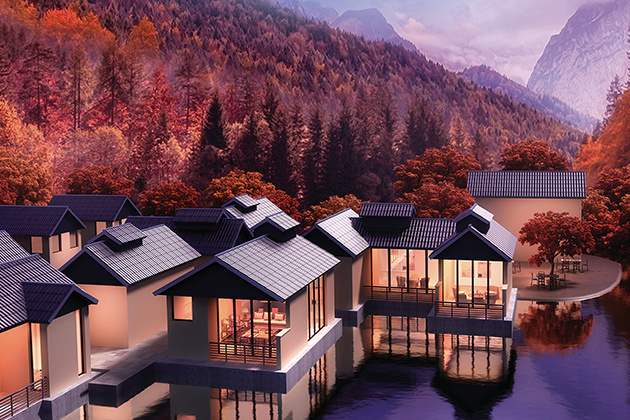

SOLTILE HANOK

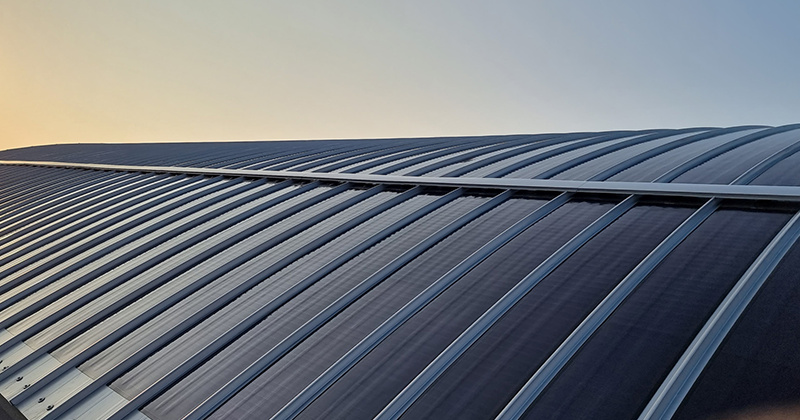

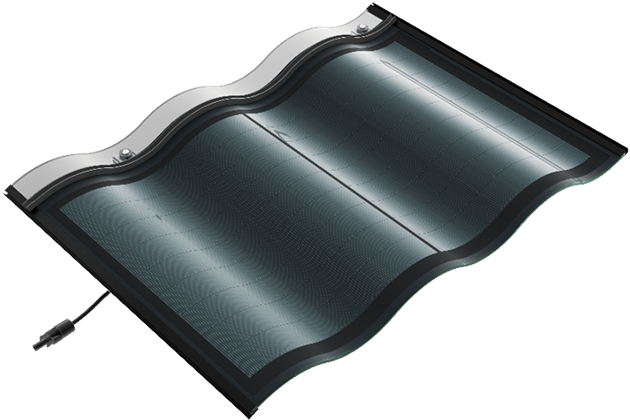

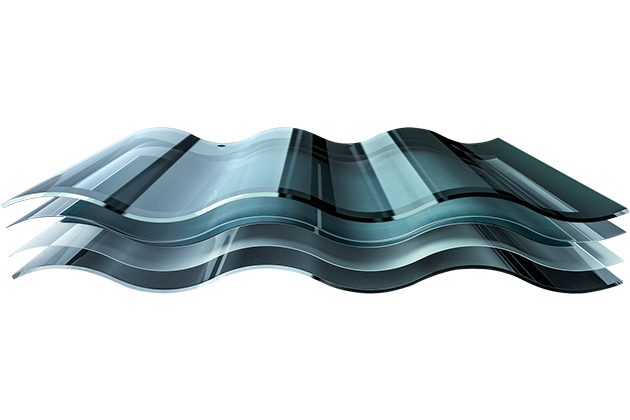

Soltile_Curved
FEATURE

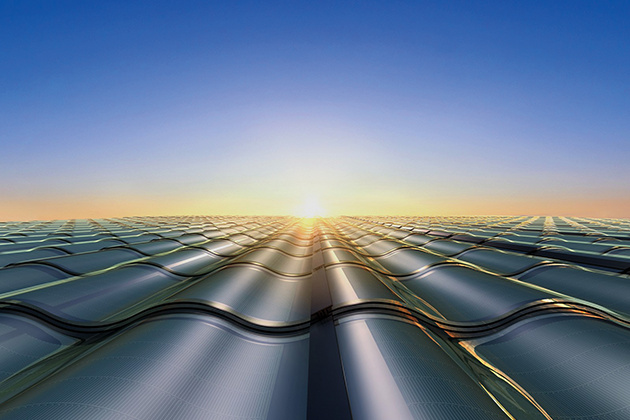

- Roof integrated photovoltaic power module
- Enable to custom fabrication according to design drawing
- Easy constructability, durability and easy to maintain
- Roof finishing without need of additional structure and enable to photovoltaic power generation
- Improve power generation performance by the scattering of light by patterning of the module surface
-

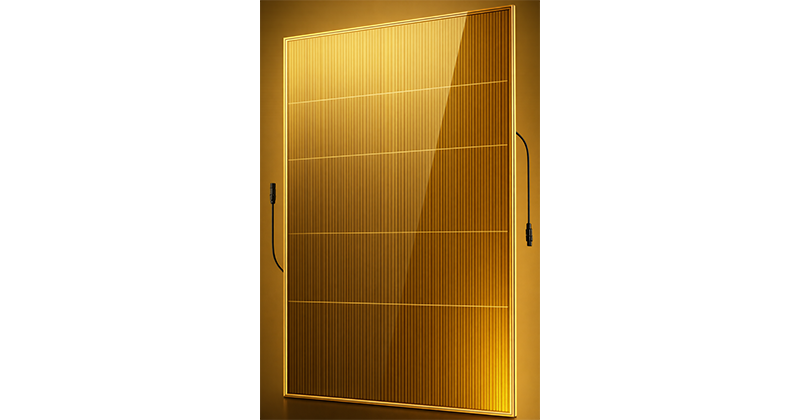

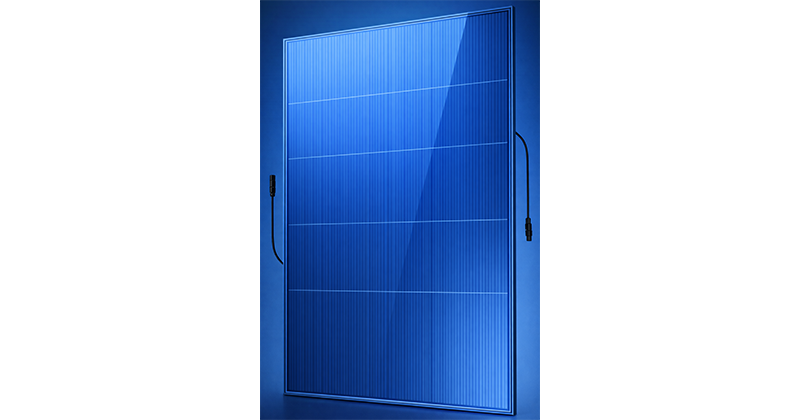

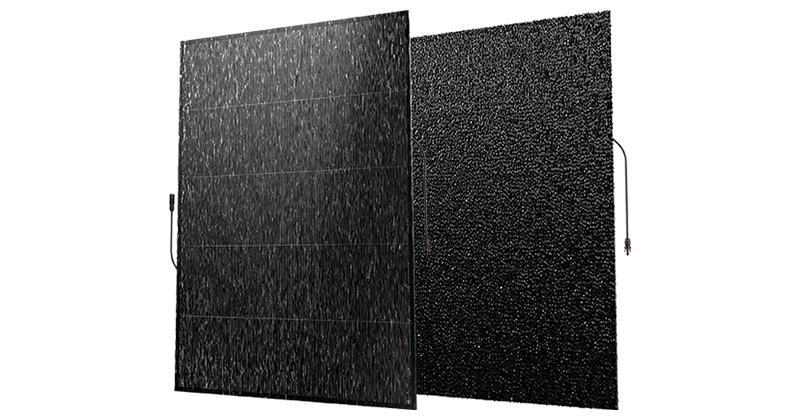

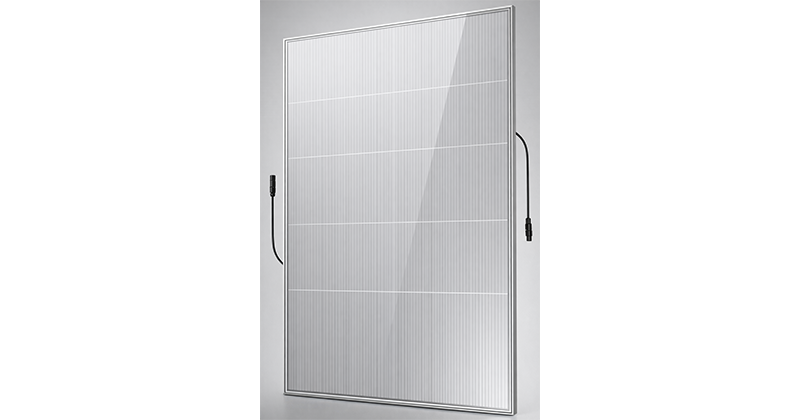

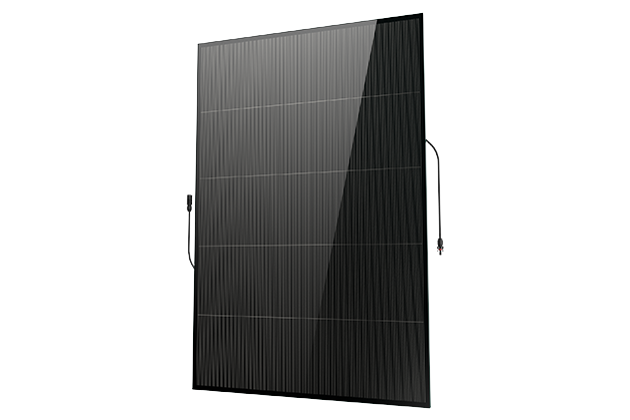

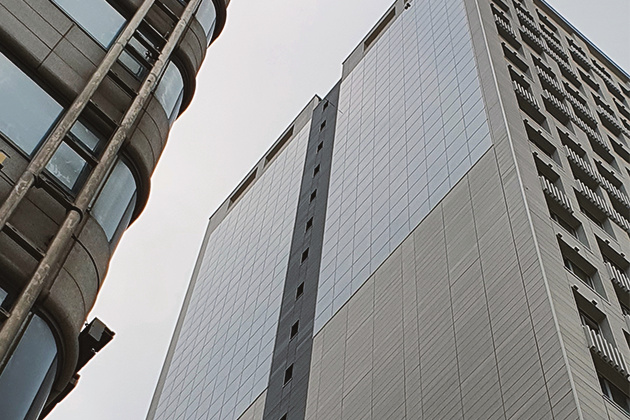

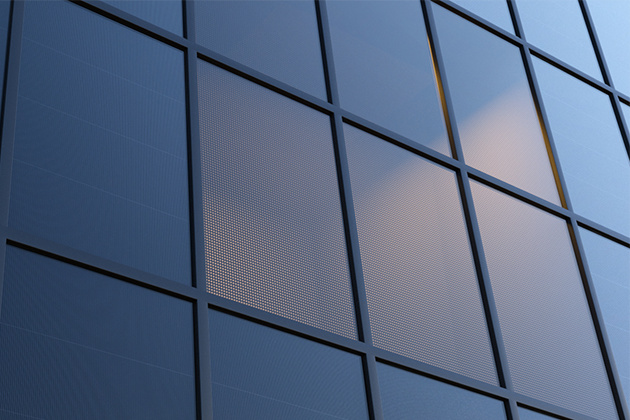

Solwall
FEATURE

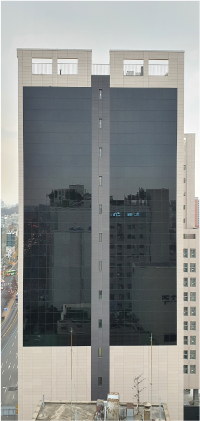

- Wall integrated photovoltaic power module
- Enable to customized fabrication according to design drawings
- Module surface pattern technology solved the pollution of light reflex (glaring) in the center of the city
- Easy constructability, durability and easy to maintain
SPECIFICATION
- Power
- 328W
- Efficiency
- 19.4%
- Length
- 1612mm
- Width
- 1050mm
- Thickness
- 6mm
- Weight
- 28kg
2.SOLWALL datasheet_ver26.PDFDownload -

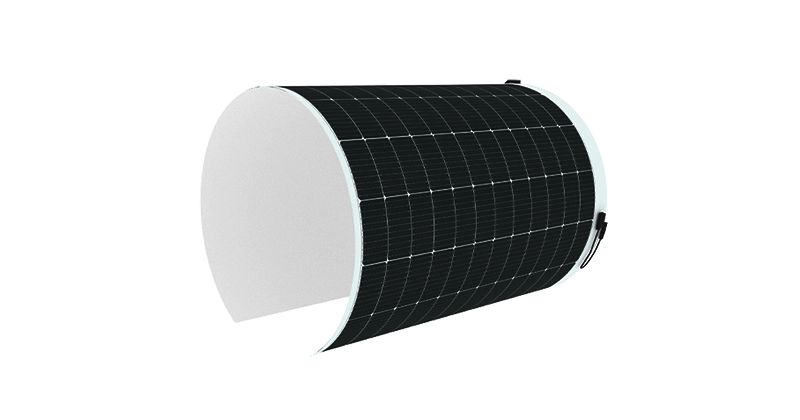

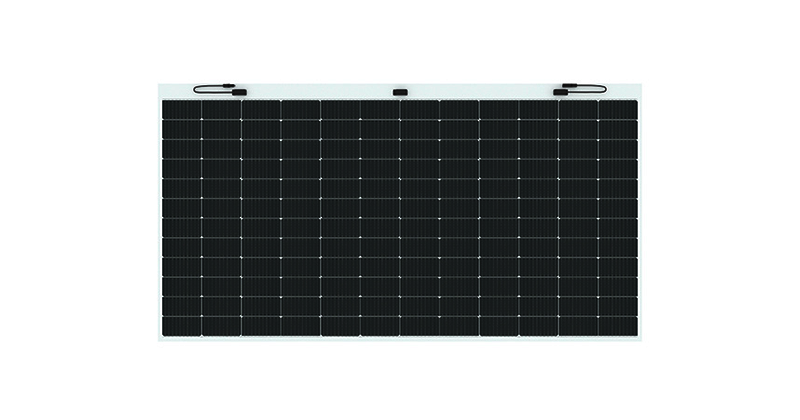

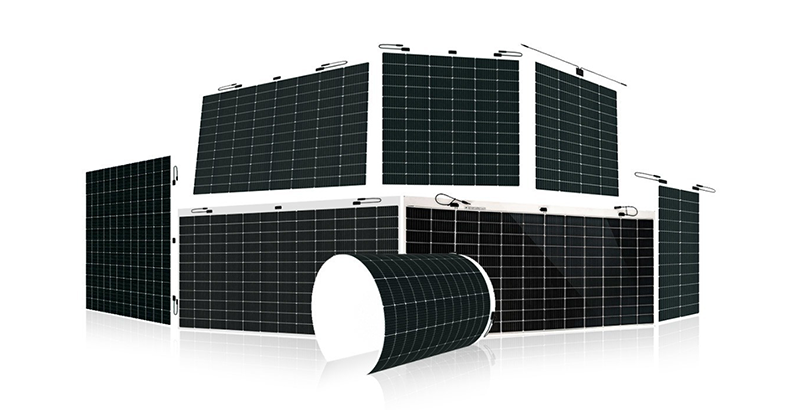

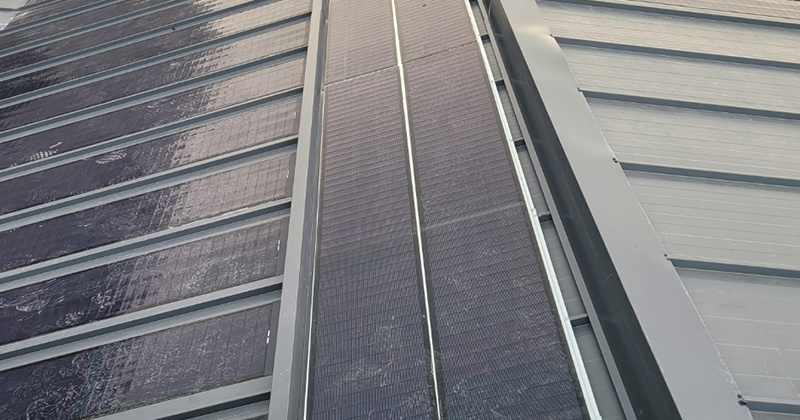

Mono Flex Module
FEATURE
- Flexible — PVDF + nanofiber encapsulation for reliable performance.
- Step-Resistant Structure — Built for durable on-site handling.
- Lightweight — Ideal for BIPV/GIPV retrofits and fast deployment.
- Shadow Shading Resistance —Hot Spot Prevention
- Fast Installation — Reduces system cost and labor time.
-

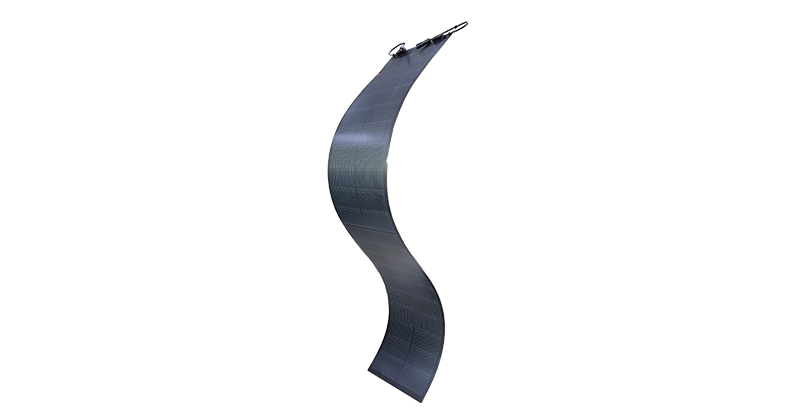

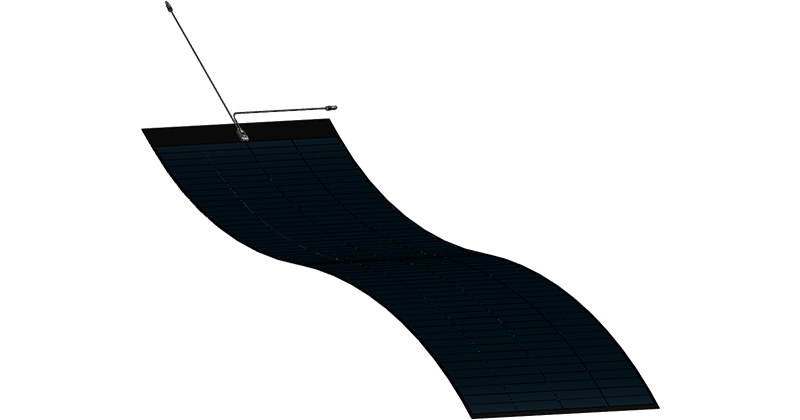

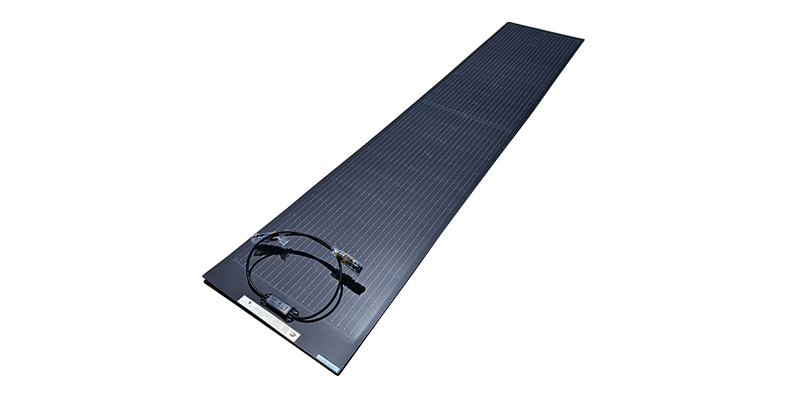

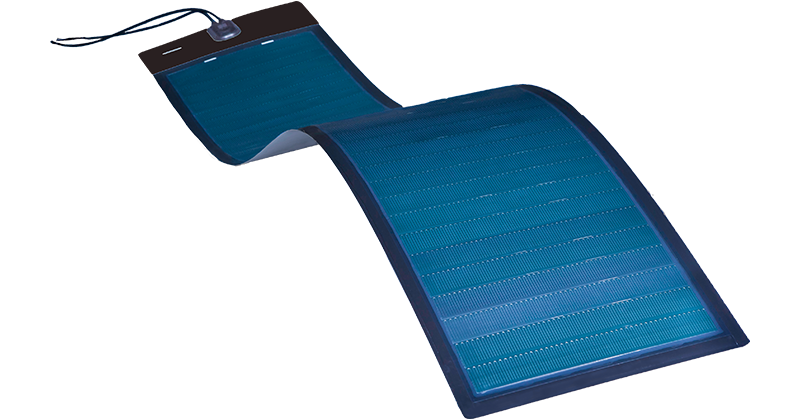

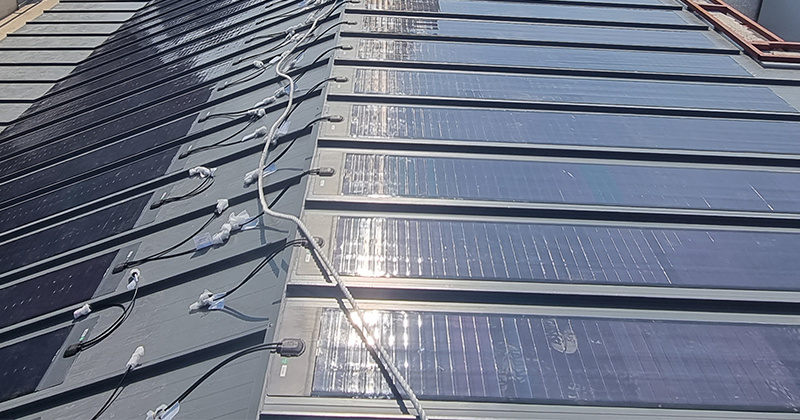

Miasolé(CIGS Flexible Module)
FEATURE
- Maximum 16% of cell efficiency
- Installation weight less than 24kg/m2
- No structure is required for construction
- High wind load, shock resistance, durability and easy constructability
SPECIFICATION
- Power
- 125W
- Chip type
- Copper,
Indium,
gallium,
Diselenide(CIGS) - Length
- 2585mm
- Width
- 348mm
- Thickness
- 2.5mm
- Weight
- 1.9kg
4.Miasole CIGS flex datasheet_ver25.PDFDownload -
Hanwall
FEATURE
- Exterior wall integrated solar curtain wall type
- High aesthetics and diverse colors
- High wind load, durability, easy constructability
- High power generation efficiency as it receives less influence by the direction, angle and shadow by using CIGS Flexible Cell
SPECIFICATION
- Power
- 120W
- Chip type
- Copper,
Indium,
gallium,
Diselenide(CIGS) - Length
- 1192(+1/-1)mm
- Width
- 792(+1/-1)mm
- Thickness
- 15(±0.2)mm
- Weight
- 33kg
5.Hanwall datasheet.PDFDownload -

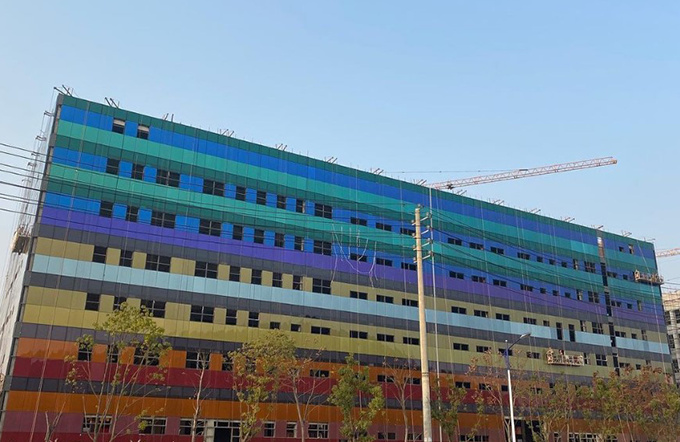

CIGS Power Glass
FEATURE
- Low power temperature coefficient, more advantageous for power generation in humid and hot weather
- High mechanical load to resist wind and snow(3600Pa)
- Passed the highest fire rating: Class C
- Rich and beautiful colors
- 0~60% adjustable transparency
- Thermal insulation, sound insulation and noise reduction
- Low carbon emissions/Green and environmentally-friendly
SPECIFICATION
- Power
- 145W
- Chip type
- CIGS
- Dimension
- 1587 * 664mm
- Thickness
- 5.8mm
- Weight
- 17kg
6.CIGS Power Glass datasheet_ver26.PDFDownload -

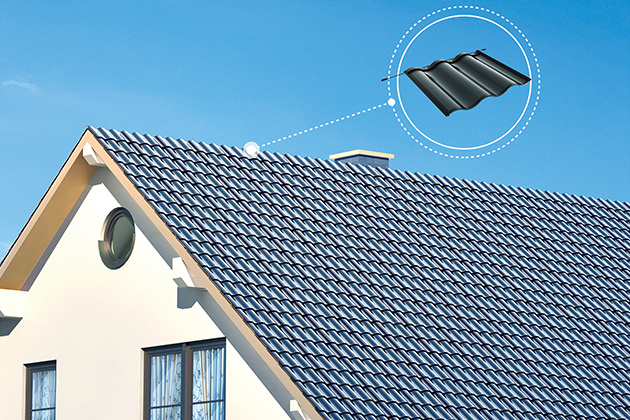

Hantile
FEATURE
- Roof integrated photovoltaic - traditional roof tile shape
- High aesthetics and diverse colors
- High wind load, durability and shock resistance
- High power generation efficiency as it receives less influence by the direction, angle and shadow by using CIGS Flexible Cell
SPECIFICATION
- Power
- 30W
- Chip type
- CIGS
- Dimension
- 725 * 500 * 41mm
- Weight
- 9.5kg
7.Hantile datasheet.PDFDownload -

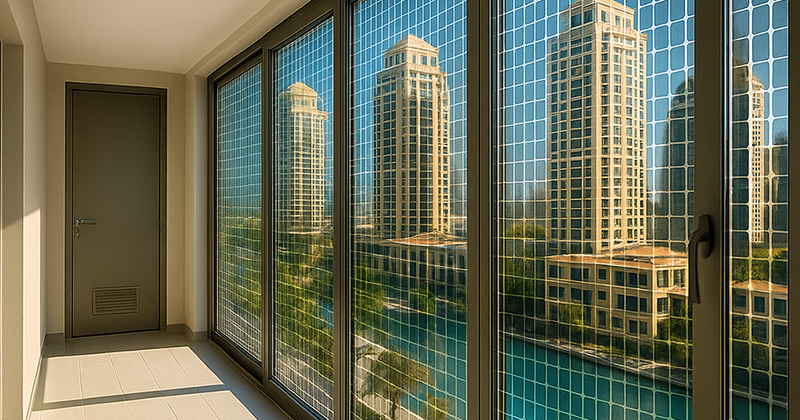

Transparency Solar Window
FEATURE
- Enable to manufacture according to design
- Floodlight function together with function of blind
- Function of highly aesthetic solar window
- High wind load and high durability
SPECIFICATION
- Power
- 125W
- Size
- 2400 * 635 * 11mm
- Weight
- 40kg
- Cells
- M2-5BB/Cell*s 960pcs
- J-Box type
- Edge-X*pcs
- Front PVB
- 0.76mm
- Front Glass
- 5mm (tempered ultra-clear glass)
- Rear PVB
- 0.76mm
- Rear Glass
- 5mm (tempered clear glossy glass)
8.Transparency Solar Window(CIGS) datasheet_ver26.PDFDownload -

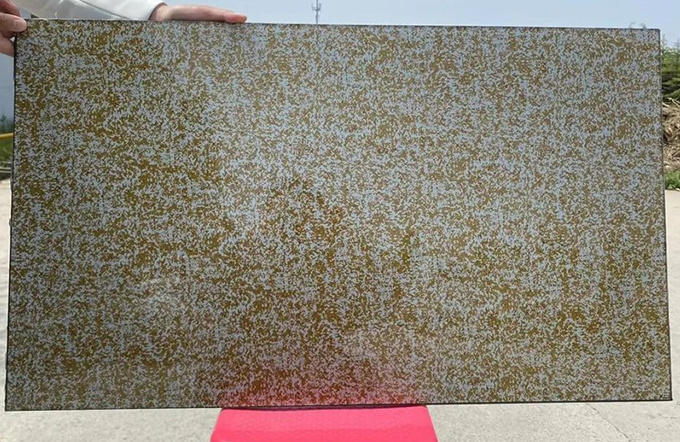

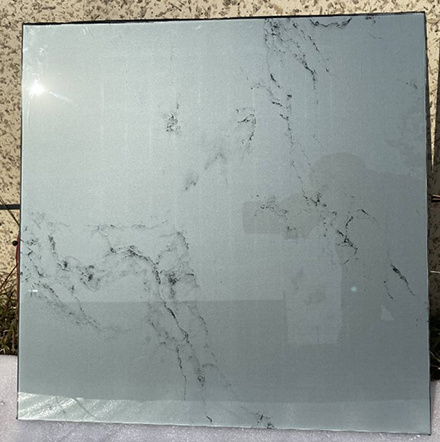

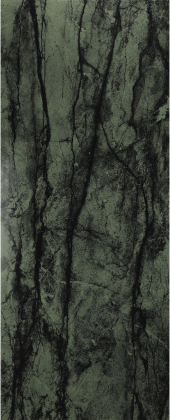

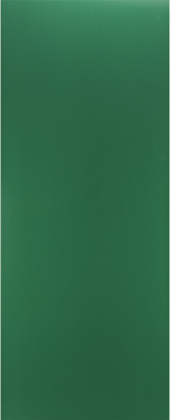

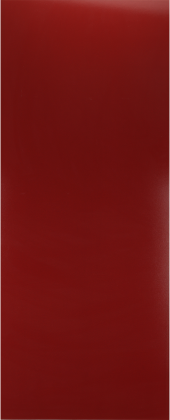

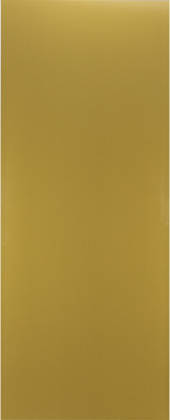

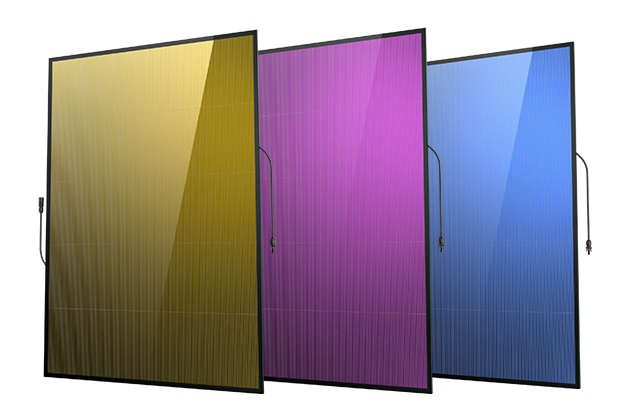

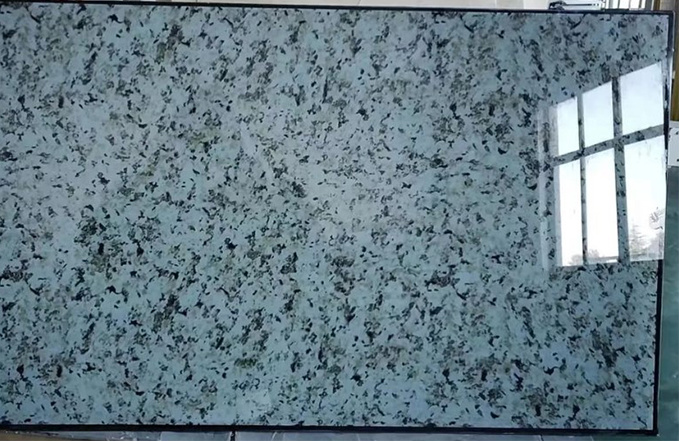

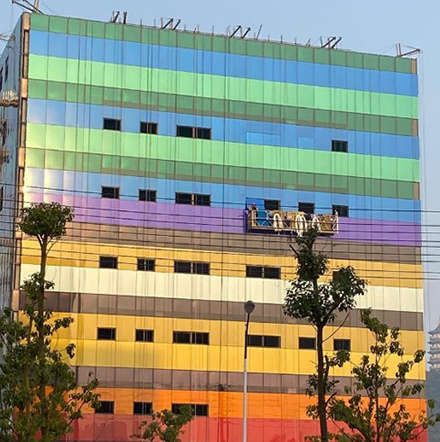

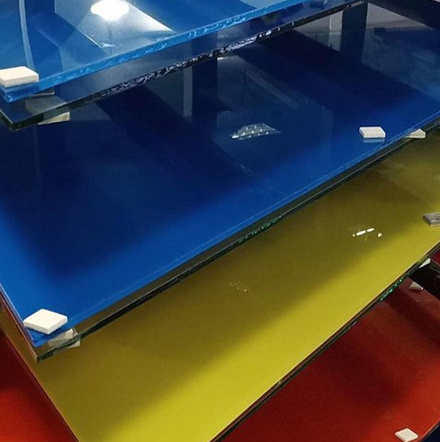

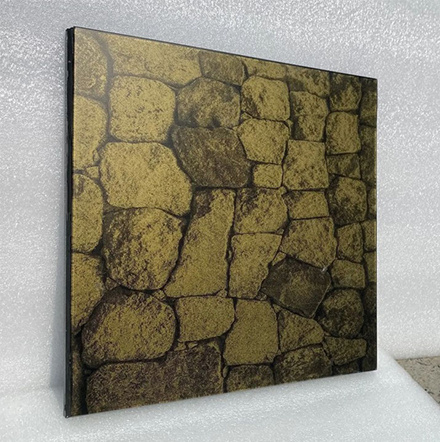

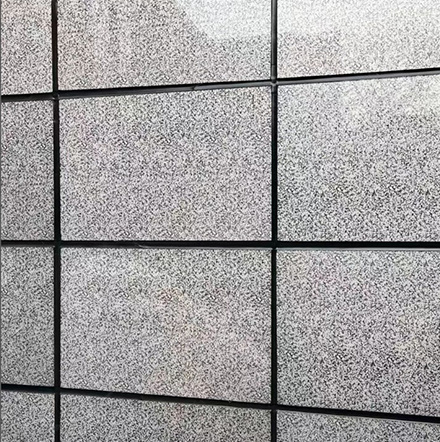

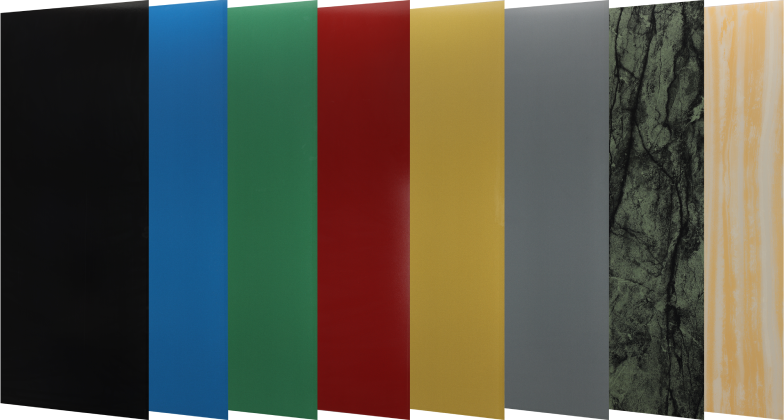

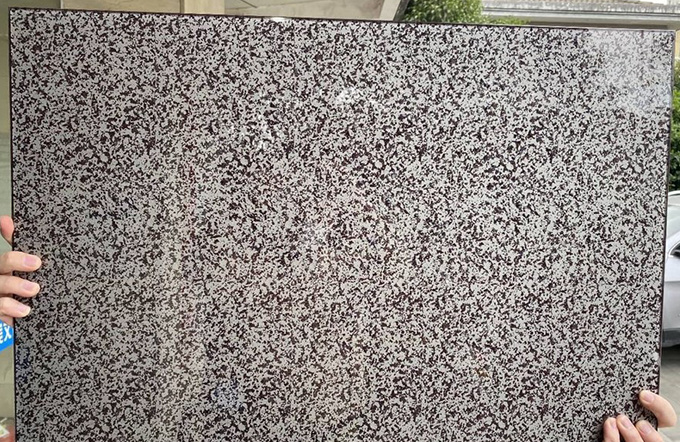

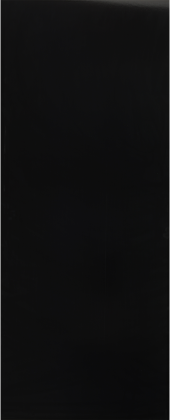

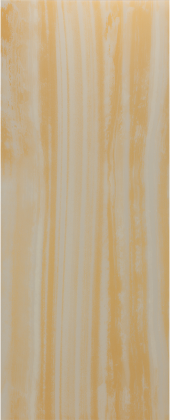

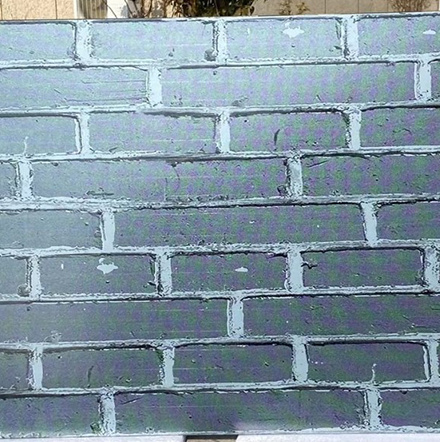

Diverse BIPV Module (Designed & Colored Glass Module)
